Product Details
Place of Origin: China
Brand Name: SFT
Model Number: GE 140 SX
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
OD: |
210mm |
ID: |
140mm |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Plain Bearings |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |
OD: |
210mm |
ID: |
140mm |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Plain Bearings |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |

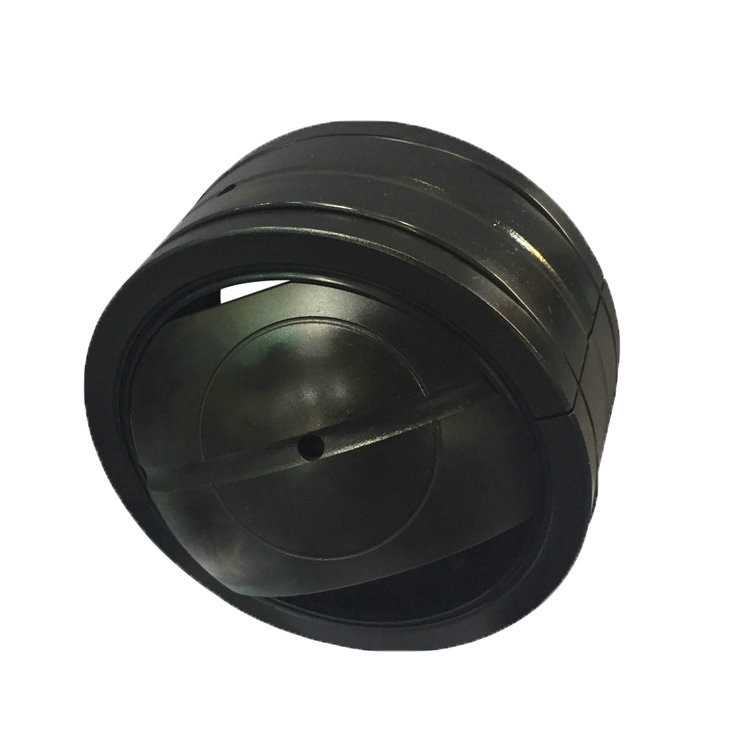

GE 140 SX Knuckle Bearing / Joint Bearing /Spherical Plain Bearing
Product Description of Spherical Plain Bearing:
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.
Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.
Features of Spherical bearing
| SPECIFICATION | |
| Model | GE 140 SX |
| Material | Steel / Steel |
| Inner diameter | 140mm |
| Outer diameter | 210mm |
| ball width | 45mm |
| Model Available | GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ...... |
| Application | Agricultural machinery, Shock absorber, etc |
| Package | Tube, carton box, wooden box, pallet |
| Delivery time | 1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity |
| OEM | Accept |
| Payment terms | TT, L.C, D/A, D/P, Western Union, Paypal |
GE... SX Angular Contact Spherical Plain Bearing
| Model | Shaft Diameter | Mass | Dimensions (mm) | Basic load ratings | |||||||
| kg | d | D | T | dk | D1 | B | C | Dyn. | Stat. | ||
| Cr N | Cor . N | ||||||||||
| GE 25 SX | 25 | 0.14 | 25 | 47 | 15 | 42.5 | 31.4 | 14 | 14 | 47800 | 239000 |
| GE 28 SX | 28 | 0.18 | 28 | 52 | 16 | 47 | 35.7 | 15 | 15 | 57500 | 287000 |
| GE 30 SX | 30 | 0.21 | 30 | 55 | 17 | 50 | 36.1 | 16 | 16 | 64600 | 323000 |
| GE 35 SX | 35 | 0.27 | 35 | 62 | 18 | 56 | 42.4 | 17 | 17 | 78500 | 392000 |
| GE 40 SX | 40 | 0.33 | 40 | 68 | 19 | 60 | 46.8 | 18 | 18 | 90600 | 453000 |
| GE 45 SX | 45 | 0.42 | 45 | 75 | 20 | 66 | 52.9 | 19 | 19 | 106000 | 532000 |
| GE 50 SX | 50 | 0.46 | 50 | 80 | 20 | 74 | 59.1 | 19 | 19 | 118000 | 590000 |
| GE 55 SX | 55 | 0.68 | 55 | 90 | 23 | 80 | 62 | 22 | 22 | 149000 | 745000 |
| GE 60 SX | 60 | 0.73 | 60 | 95 | 23 | 86 | 68.1 | 22 | 22 | 160000 | 802000 |
| GE 65 SX | 65 | 0.77 | 65 | 100 | 23 | 92 | 75.6 | 22 | 22 | 173000 | 867000 |
| GE 70 SX | 70 | 1.1 | 70 | 110 | 25 | 102 | 82.2 | 24 | 24 | 208000 | 1040000 |
| GE 80 SX | 80 | 1.5 | 80 | 125 | 29 | 115 | 90.5 | 27 | 27 | 244000 | 1220000 |
| GE 90 SX | 90 | 2.1 | 90 | 140 | 32 | 130 | 103.3 | 30 | 30 | 313000 | 1560000 |
| GE100SX | 100 | 2.3 | 100 | 150 | 32 | 140 | 114.3 | 30 | 30 | 339000 | 1690000 |
| GE110SX | 110 | 3.9 | 110 | 170 | 38 | 160 | 125.8 | 36 | 36 | 469000 | 2340000 |
| GE120SX | 120 | 4 | 120 | 180 | 38 | 170 | 135.4 | 36 | 36 | 498000 | 2490000 |
| GE130SX | 130 | 6.1 | 130 | 200 | 45 | 190 | 148 | 42 | 42 | 622000 | 3110000 |
| GE140SX | 140 | 6.5 | 140 | 210 | 45 | 200 | 160.6 | 42 | 42 | 663000 | 3310000 |
| GE150SX | 150 | 7.9 | 150 | 225 | 48 | 213 | 170.9 | 45 | 45 | 764000 | 3820000 |
| GE160SX | 160 | 9.4 | 160 | 240 | 51 | 225 | 181.4 | 48 | 48 | 872000 | 4360000 |
| GE170SX | 170 | 13 | 170 | 260 | 57 | 250 | 194.3 | 54 | 54 | 1080000 | 5440000 |
| GE180SX | 180 | 17.5 | 180 | 280 | 64 | 260 | 205.5 | 61 | 61 | 1310000 | 6590000 |
| GE190SX | 190 | 18.3 | 190 | 290 | 64 | 275 | 211.8 | 61 | 61 | 1370000 | 6850000 |
| GE200SX | 200 | 23.3 | 200 | 310 | 70 | 290 | 229.2 | 66 | 66 | 1540000 | 7740000 |
Applications of Spherical Plain Bearing:
electric motors, automotive applications, home appliances, industrial equipment.
Radial Spherical plain bearings are design to cater to all heavy loading equipments.
Plain bearings are able to cater to various sliding contact surfaces;
Steel/PTFE composite material and Steel/PTFE fabric material.
Range of production range from ID15mm to ID250mm.
