Product Details
Place of Origin: China
Brand Name: SFT
Model Number: FKN6205-2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Bore Size: |
25 Mm |
Torque Range (Nm): |
460 |
Outer Diameter: |
52 Mm |
Applicable Industries: |
CNC Machine, PCB Processing Machinery, Etc |
WEIGHT: |
0.15 Kg |
Type: |
Sprag |
Bore Size: |
25 Mm |
Torque Range (Nm): |
460 |
Outer Diameter: |
52 Mm |
Applicable Industries: |
CNC Machine, PCB Processing Machinery, Etc |
WEIGHT: |
0.15 Kg |
Type: |
Sprag |

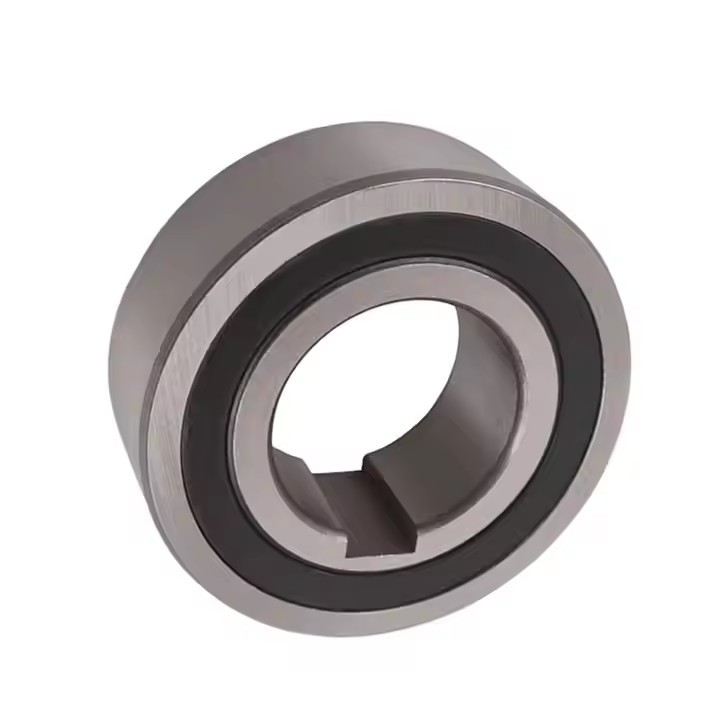

Freewheel Clutch FKN 6205-2RS One Way Bearing Sprag
Data Sheet
| Item | FKN |
| Material | GCr15 |
| Bore size | 25 mm |
| Outer dia. | 52 mm |
| Width | 15 mm |
| Weight | 0.15 kg |
| Torque | 104 Nm |
| Max. speed | 2800 rpm |
| Port | Shanghai;Ningbo |
| Delivery time | 10-15 days |
| Package | Singer package or as your requirements |
Components
| Freewheel clutch insert element* | FE 400 Z2 |
| + Raceways | Bearing steel, hardened and ground |
| inner ring |
Keyway per DIN 6885, (Sizes 6203-6206) Keyway per DIN 6885, (Sizes 6207-6208) Tolerance: P9 with back clearance |
|
outer ring |
Press fit |
| + Ball bearing | Integrated |
|
+ Roller bearing |
- |
| + Lubrication | Lifetime grease lubrication* |
| + Seal | RS seals* |
Drawing legend:
d = inner diameter D = outer diameter W = width r = edge radius T = torque n = rotation speed C = load capacity
The specified nominal torque is based on sufficient stiffness of mating parts.
Rotation speed n for series FKN (without seals) = assembly unit's inherent speed
Rotation speed n for series FKN 2RS (with seals) = speed difference of mating parts.
Supplementary Introduction
Operating temperature
max. 140°C
Higher temperatures on request
max. 110°C (design 2RS with RS seals)
Lubrication
Series FKN 2RS with seals
Operative lifetime grease lubrication
Series FKN without seals
Oil or grease lubrication
Delivered with corrosion protection.
Installation
Installation tolerances
Shaft n6; hub N7
Mating parts
Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing
The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping direction.
Seals*
The RS Seals reliably seal out grease and dust but are not suitable to protect against permanent higher liquid levels.
Series FKN 6203-RS has an RS seal on one side only (RS Seal on the freewheel side).
All specifications for series FKN 2RS (with seals) and series FKN (without seals)
