Product Details
Place of Origin: CHINA
Brand Name: SFT
Model Number: NK0612
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: 1-50USD/PC
Packaging Details: neutral
Delivery Time: 45 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000PCS
Bore Size: |
5 - 68 Mm |
Outer Diameter: |
16-90 Mm |
Thickness: |
15.88mm |
Material: |
Gcr15 |
Cage: |
Steel Cage |
Type: |
Needle |
Bore Size: |
5 - 68 Mm |
Outer Diameter: |
16-90 Mm |
Thickness: |
15.88mm |
Material: |
Gcr15 |
Cage: |
Steel Cage |
Type: |
Needle |

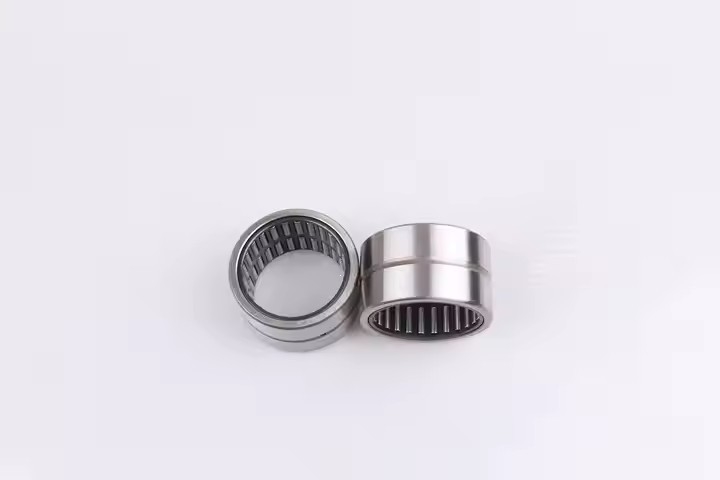

NK Series NK0612 Radial Needle Roller Bearing without inner ring
Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. We supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and applications.
|
Shaft Diameter |
Bearing Designation |
Mass
Approx |
Boundary Dimensions |
Basic Load Rating |
Limiting Speed |
||||
|
Current Code |
Original Code |
Fw | D | C |
Dynamic |
Static |
Oil |
||
| mm | g | mm | N | rpm | |||||
| 5 | NK5/10TN | 2.9 | 5 | 10 | 10 | 2100 | 1400 | 36780 | |
| NK05/08 | 5 | 10 | 8 | ||||||
| NK05/10TN-OH | 5 | 10 | 12 | 2350 | 1920 | 39000 | |||
| NK05/12TN | 3.7 | 5 | 10 | 12 | 3000 | 2650 | 39000 | ||
| 6 | NK06/10 | 6 | 12 | 10 | 2600 | 2200 | 37000 | ||
| NK06/10TN | 6 | 12 | 10 | 2600 | 2200 | 37000 | |||
| NK06/12TN | 5.7 | 6 | 12 | 12 | 3350 | 3150 | 37000 | ||
| RNA6X13X8TN | 6 | 13 | 8 | ||||||
| 7 | NK07/10 | 6.9 | 7 | 14 | 10 | 2850 | 2650 | 34000 | |
| NK07/12 | 8.2 | 7 | 14 | 12 | 3650 | 3600 | 34000 | ||
| 7.8 | RNA7.8169 | 7.8 | 16 | 9 | |||||
| 8 | NK8/12TN | 8.3 | 8 | 15 | 12 | 3950 | 4100 | 32000 | |
| NK08/12 | 8.7 | 8 | 15 | 12 | 3950 | 4100 | 32000 | ||
| NK08/16 | 12 | 8 | 15 | 16 | 5100 | 5800 | 32000 | ||
| NK08/16TN | 8 | 15 | 16 | 5100 | 5800 | 32000 | |||
| RNA8X19X9 | 8 | 19 | 9 | ||||||
| RN8X14X8 | 8 | 14 | 8 | ||||||
| RNA496 | 8 | 15 | 10 | ||||||
| RNA8X15X10TN | 8 | 15 | 10 | ||||||
| 9 | NK09/12 | 10.3 | 9 | 16 | 12 | ||||
| 10 | NK10/12TN | 462409K | 10 | 10 | 17 | 12 | 4750 | 5300 | 29000 |
| 5624097 | 16.6 | 10 | 17 | 15 | 4860 | 7100 | 29000 | ||
| NK10/10 | 10 | 17 | 10 | ||||||
| NK10/12 | 10 | 17 | 12 | ||||||
| NK10/16 | 10 | 17 | 16 | 6200 | 7800 | 29000 | |||
| NK10/16TN | 10 | 17 | 16 | 6200 | 7800 | 29000 | |||
| NKS10 | 10 | 19 | 13 | 5800 | 6000 | 29000 | |||
| 12 | NK12/12TN | 644097 | 11.8 | 12 | 19 | 12 | 6000 | 6400 | 27000 |
