Product Details
Place of Origin: China
Brand Name: SFT
Model Number: GE45ES 2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Application: |
Oil Cylinder,Excavator, Trucks , Other Machinery |
ID: |
80 |
OD: |
120 |
Lubrication: |
PTFE |
Material: |
Steel/Steel And Steel/PTFE Fabric Material |
Thickness (mm): |
74 |
Single Gross Weight: |
2.5 Kg |
Application: |
Oil Cylinder,Excavator, Trucks , Other Machinery |
ID: |
80 |
OD: |
120 |
Lubrication: |
PTFE |
Material: |
Steel/Steel And Steel/PTFE Fabric Material |
Thickness (mm): |
74 |
Single Gross Weight: |
2.5 Kg |

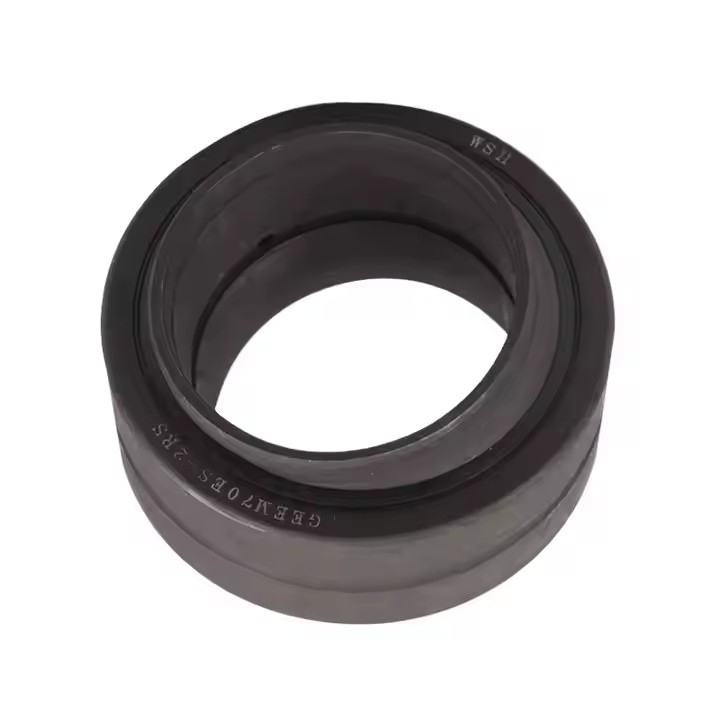

GE80HO 2RS 80mmx120mmx74mm Lubricated Radial Spherical Plain Bearings for Oil Cylinder
Description of GE80HO 2RS 80mmx120mmx74mm Lubricated Radial Spherical Plain Bearings for Oil Cylinder
GE...HO 2RS series Lubricated Radial Spherical Plain Bearings is the same the GEEM...ES 2RS series Lubricated Radial Spherical Plain Bearings
The characteristics and performance parameters:
1, Material: the inner and outer rings are bearing steel(GCr15).
2, Heat Treatment: the inner and outer rings are quenched and phosphating.
3, Structure: There are oil groove and oil hole in the inner and outer ring.Cylinders are extended both sides of the inner ring .The outer ring has an axial slot.Sealing rings are attached on the both sides.
4, The sliding surface coated with MoS2 powder lubricant.
5, Performance Characteristic: It has the advantages of abrasion resistance, corrosion resistance,and self aligning . It applies to the machine which requires heavy radial load and axial load in a small-range direction.It is suitable for the installation occasions which require to integrate the retainer ring and the inner ring.
Parameter sheet of GE80HO 2RS 80mmx120mmx74mm Lubricated Radial Spherical Plain Bearings for Oil Cylinder
| Model | Dimensions (mm) | Load Ratings (KN) | Weight (Kg) | ||||||||
| d | D | B | C | dk | r1 min | r2 min | α | Dynamic | Static | ||
| GE20HO 2RS | 20 | 35 | 24 | 12 | 29 | 0.3 | 0.3 | 6 | 30 | 146 | 0.073 |
| GE25HO 2RS | 25 | 42 | 29 | 16 | 35.5 | 0.3 | 0.6 | 4 | 48 | 240 | 0.13 |
| GE30HO 2RS | 30 | 47 | 30 | 18 | 40.7 | 0.3 | 0.6 | 4 | 62 | 310 | 0.17 |
| GE35HO 2RS | 35 | 55 | 35 | 20 | 47 | 0.6 | 1 | 4 | 79 | 399 | 0.25 |
| GE40HO 2RS | 40 | 62 | 38 | 22 | 53 | 0.6 | 1 | 4 | 99 | 495 | 0.35 |
| GE45HO 2RS | 45 | 68 | 40 | 25 | 60 | 0.6 | 1 | 4 | 127 | 637 | 0.49 |
| GE50HO 2RS | 50 | 75 | 43 | 28 | 66 | 0.6 | 1 | 4 | 156 | 780 | 0.6 |
| GE60HO 2RS | 60 | 90 | 54 | 36 | 80 | 0.6 | 1 | 3 | 245 | 1220 | 1.15 |
| GE70HO 2RS | 70 | 105 | 65 | 40 | 92 | 0.6 | 1 | 4 | 313 | 1560 | 1.65 |
| GE80HO 2RS | 80 | 120 | 74 | 45 | 105 | 0.6 | 1 | 4 | 400 | 2000 | 2.5 |
