Product Details
Place of Origin: CHINA
Brand Name: SFT
Model Number: OWC416GXRZ
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: 1-50USD/PC
Packaging Details: neutral
Delivery Time: 45 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000PCS
Shaft Dia.: |
4mm |
Bore Size: |
4 - 4.001 Mm |
Shaft Dia: |
4mm |
Type: |
Needle |
Weight: |
1.6g |
Cage: |
Steel Cage |
Shaft Dia.: |
4mm |
Bore Size: |
4 - 4.001 Mm |
Shaft Dia: |
4mm |
Type: |
Needle |
Weight: |
1.6g |
Cage: |
Steel Cage |
Features of changzhou needle bearing

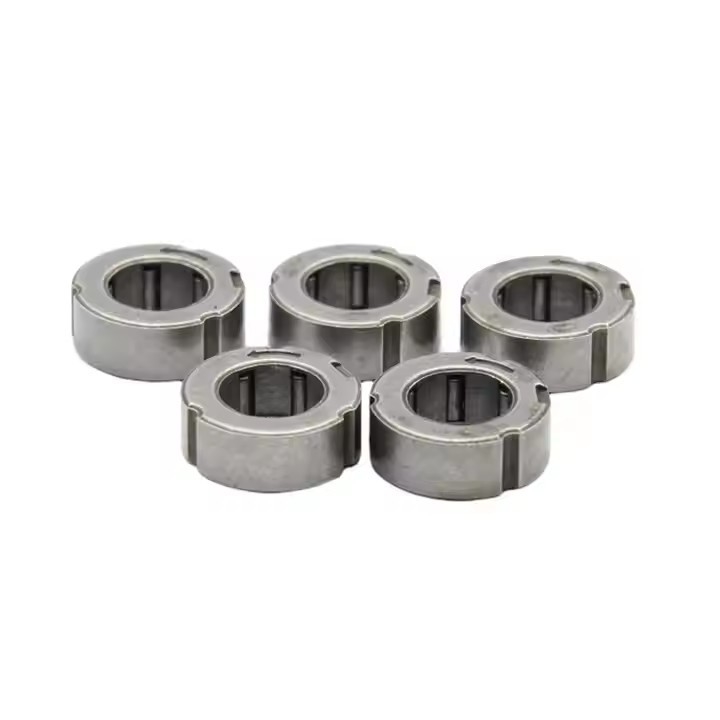

OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
Material of changzhou needle bearing
Outer ring: is made by sintered metal
Spring: is made by stainless steel
| Product name | changzhou needle bearing |
| Model | OWC406GXRZ |
| Material | ST14 |
| Shaft diameter | 4mm |
| lnner diameter | 4mm |
| Outer diameter | 8mm |
| Weight | 1.6g |
| Application | Fishing machinery, ATM, Counting machine, Printer, copier, etc |
| Package | Roll + Carton Box / Wooden box |
| Payment terms | TT. L/C, D/A,D/P,Western Union,pAYPAL |
| Delivery time | 2-4 days for the sample, 7 days for big order |
Catalogue of changzhou needle bearing for your choice
GXRZ series are clockwise rotation
GXLZ series are anticlockwise rotation
| Shaft Dia. | Model | Weight | Size (mm) | Driving Torque | ||
| mm | g | Inner Dia. | Outer Dia. | Height | ( Nm ) | |
| 4 | OWC406GXRZ | 1.6 | 4 | 8 | 6 | 2.5 |
| 4 | OWC408GXRZ | 1.8 | 4 | 8 | 8 | 3.1 |
| 4 | OWC410GXRZ | 1.8 | 4 | 10 | 5.4 | 2.8 |
| 5 | OWC511GXRZ | 2 | 5 | 11 | 5.4 | 3.5 |
| 6 | OWC612GXRZ | 2.3 | 6 | 12 | 5.4 | 5.2 |
| OWC612GXLZ | 2.3 | 6 | 12 | 5.4 | 5.2 | |
| 8 | OWC814GXRZ | 2.8 | 8 | 14 | 5.4 | 6.1 |
| 8 | OWC814GXLZ | 2.8 | 8 | 14 | 5.4 | 6.1 |
| OWC812GXRZ | 2.8 | 8 | 12 | 5 | 5.8 | |
| 10 | OWC1016GXRZ | 3 | 10 | 16 | 5.4 | 9.5 |
| 10 | OWC1016GXLZ | 3 | 10 | 16 | 5.4 | 9.5 |
| 6 | OWC612-8.4 | 2.35 | 6 | 12 | 8.4 | 6.8 |
| 6 | OWC610GXRZ | 2.38 | 6 | 10.2 | 8 | 4.6 |
| 6 | OWC614-7 | 2.1 | 6 | 14 | 7 | 6.6 |
| 6 | OWC720 | 2.5 | 6 | 12.7 | 7.5 | 7.3 |
| 6 | OWC178 | 3 | 6 | 10.2 | 15 | 7.3 |
| 8 | OWC816-7 | 2.6 | 8 | 16 | 7 | 7.5 |
| 8 | OWC812 | 3 | 8 | 12.7 | 7.3 | 6.8 |
| 8 | OWC816-5.5 | 3.5 | 8 | 16 | 5.5 | 8.2 |
| 8 | OWC816-6.2 | 3.8 | 8 | 16 | 6.2 | 8.8 |
| 10 | OWC1016-8 | 3.35 | 10 | 16 | 8 | 9.7 |
| 10 | OWC1019GXLZ | 8.5 | 10 | 19 | 11 | 19.8 |
| 17 | OWC173512 | 22.5 | 17 | 35 | 12 | 78 |
| 17 | OWC173516 | 25.5 | 17 | 35 | 16 | 95 |
| 17 | OWC203316 | 23 | 20 | 33 | 16 | 108 |
| MARKS:NON-STANDARD CAN BE PRODUCED | ||||||
