Product Details
Place of Origin: CHINA
Brand Name: SFT
Model Number: HFL3030
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: 1-50USD/PC
Packaging Details: neutral
Delivery Time: 45 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000PCS
Weight: |
51g |
Bore Size: |
30 - 30.001 Mm |
Cage Material: |
ST14 |
Type: |
Needle |
Needle Material: |
GCr15 |
Thickness: |
30mm |
Weight: |
51g |
Bore Size: |
30 - 30.001 Mm |
Cage Material: |
ST14 |
Type: |
Needle |
Needle Material: |
GCr15 |
Thickness: |
30mm |

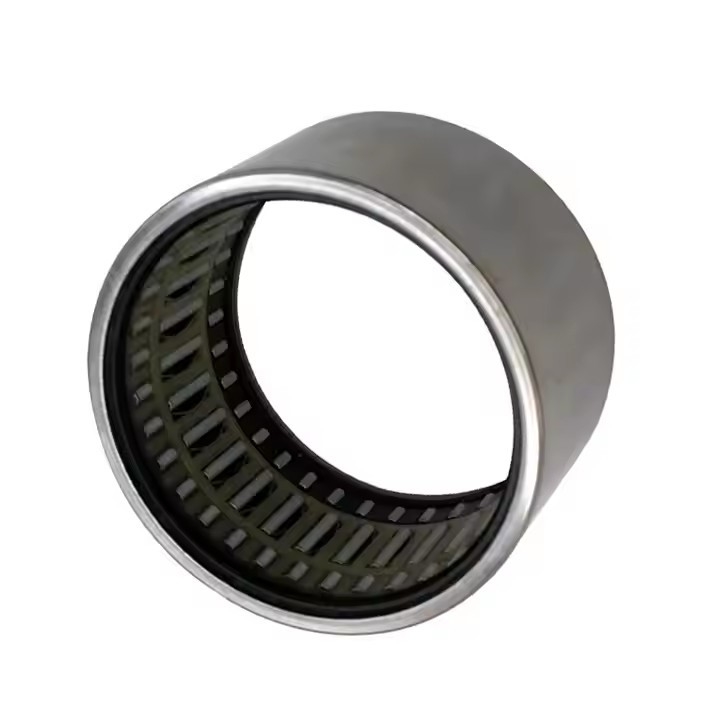

Structure of Drawn Cup Bearngs :
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.
| Product name | drawn cup needle bearing |
| Model | HFL3030 |
| Material | ST14 |
| Torque capacity | 90Nm |
| Inner diameter | 30mm |
| Outer diameter | 37mm |
| Height | 30mm |
| Weight | 51g |
| Application | Light industry, truckle, printing, textile, packing machinery |
| Package | Roll pack + Carton box + Wooden Pallet |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 2-4 days for the sample, 7 days for big order |
Catalogue of Drawn Cup Bearings for your choice
|
Shaft Diameter |
Mass Approx |
Torgue Ma |
Basic Load Ratings | ||||||||
| Clutch Designation | Borndary Dimensions | Limiting Speed | |||||||||
| Fw | D | C |
Rotating Shaft Min-1 |
Rotatng Outer Ring Min-1 |
C | Co | |||||
| KN | |||||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| 3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
| 4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
| -- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
| 8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
| -- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
| 12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
