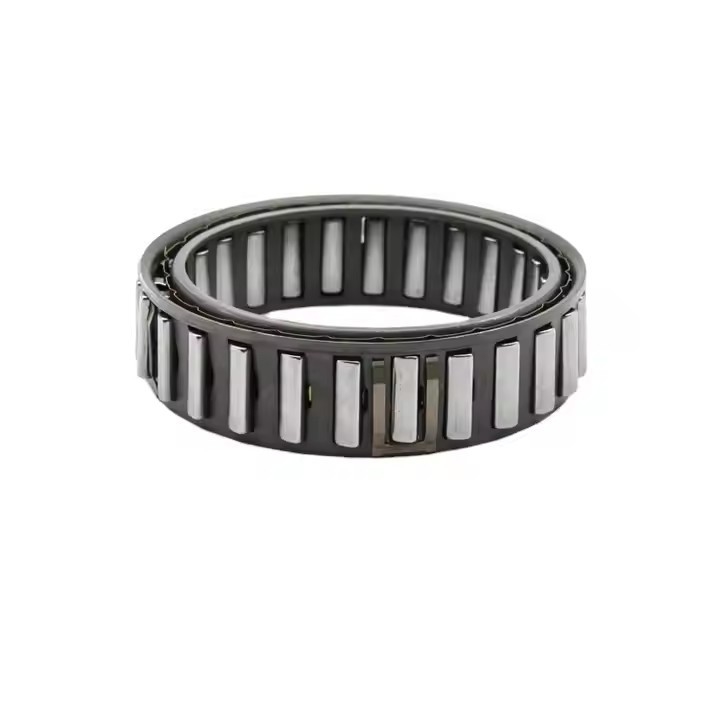

DC2222C 22.225*38.885*25.4mm Freewheel Overrunning Clutch Sprag One Way Bearings

Data Sheet

Feature

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

The DC type version-N accepts all types of lubricants currently used in the power transmis-sion equipement.

-Tolearance

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following data sheet.

-Hardness
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA.

Maximum taper between races: 0, 007 mm for 25 mm width.

Different Sizes for Your Reference

• High-Quality Material: Our DC2222C Freewheel Overrunning Clutch Sprag One Way Bearings are made from GCR15 material, ensuring durability and reliability in various industrial applications.
• Wide Range of Industries: This product is suitable for multiple industries, including building material shops, manufacturing plants, machinery repair shops, and more, catering to diverse user needs.
• Fast Delivery: With a delivery time of 1-2 days, our product ensures timely delivery, meeting the needs of businesses and industries that require quick replacements or new installations.
• Customizable Options: We offer OEM service, allowing users to customize the product according to their specific requirements, making it a valuable option for industries seeking tailored solutions.
• Durable and Reliable: With a torque capacity of 63nm and precision rating of P0, this product provides reliable performance and durability, making it an excellent choice for industries that demand high-quality components.
