Product Details
Place of Origin: China
Brand Name: SFT
Model Number: HIN10T
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Precision: |
High Precision |
Type: |
Spherical Bearings |
Seals Type: |
22-520mm |
Lubrication: |
PTFE |
Material: |
Chrome Steel GCR15 |
Precision: |
High Precision |
Type: |
Spherical Bearings |
Seals Type: |
22-520mm |
Lubrication: |
PTFE |
Material: |
Chrome Steel GCR15 |

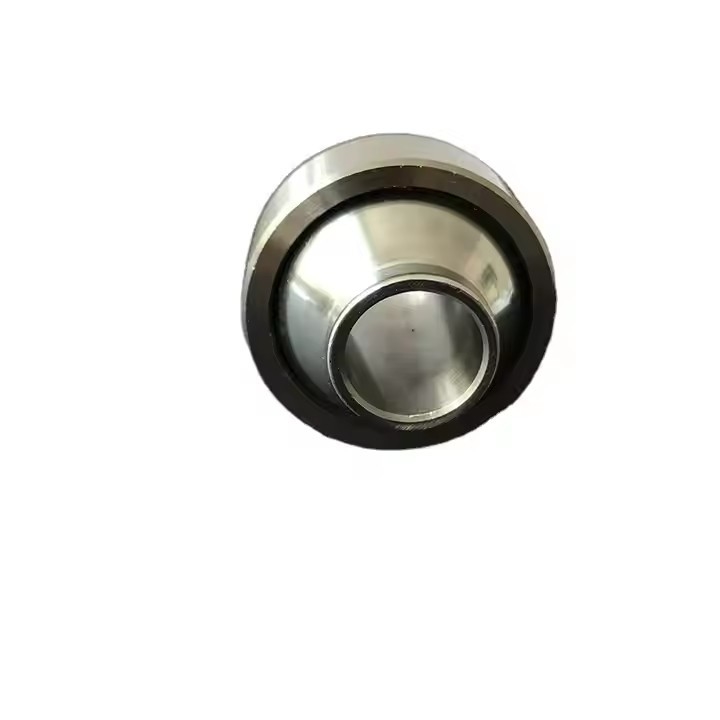

High Quality Spherical Joint Bearing Suppliers HIN8T
Benefits:
1. High grade through hardened bearing steel for improved fatigue resistance and load carrying capacity.
2. High grade balls have improved roundness and finish to extend bearing fatigue life.
3. Raceway formation and finishes to provide long life and load carrying capacity.
4. Seal designs for all operating conditions, loads and speeds.
5. Premium grease types and fill amounts for optimal bearing life
Applications for agricultural bearing :
Agriculture - Combines, Tillage equipment, Hay Balers, Mower Conditioners, Cotton Strippers, Augers, Planters/Grain Drills, wheel bearings, disc bearings.
Lawn & Garden - Lawn Mowers wheels and spindles.
Conveyors - Grain, Aggregate
 |
Material | ||||||||
| BALL | RACE | LINER | |||||||
| 52100 STEEL | 52100 steel | P.T.F.E. FABRIC | |||||||
| Rc 56MIN HARD | |||||||||
| HARD CHROME PLATED | Oil coated | ||||||||

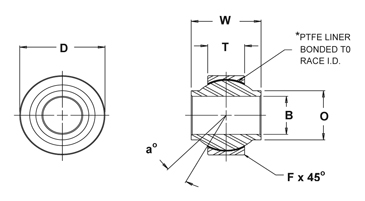

| BEARING PART NO. | B DIA. | D DIA. | W WIDTH | T WIDTH | O DIA. | BALL DIA. | F CHAMFER | ULT.STATIC RADIAL LOAD(lbs) | APPROX.WEIGHT(lbs) |
|
+.0000 -.0005 |
+.0000 -.0005 |
+.000 -.005 |
+.005 -.005 |
REF. | REF. | REF. | |||
| HIN6T | .3750 | .9060 | .813 | .345 | .512 | .781 | .030 | 16,983 | .068 |
| HIN7T | .4375 | 1.0000 | .875 | .345 | .618 | .875 | .030 | 19,023 | .095 |
| HIN8T | .5000 | 1.1250 | .937 | .401 | .730 | 1.000 | .030 | 25,275 | .160 |
| HIN10T | .6250 | 1.3750 | 1.200 | .567 | .856 | 1.250 | .030 | 44,652 | .245 |
| HIN12T | .7500 | 1.5625 | 1.280 | .620 | .970 | 1.375 | .035 | 53,716 | .315 |
| HIN14T | .8750 | 1.7500 | 1.400 | .630 | 1.140 | 1.531 | .039 | 72,535 | .440 |
