| Model | ASNU15 NFS25 |
| Type | Roller or Sprag |
| Inner diameter | 25mm |
| Outer diameter | 62mm |
| Torque capacity | 100Nm |
| Weight | 0.38kg |
| Application | Textile machine, fans, ventilators, printing machine |
| Package | Carton Box / Wooden box |

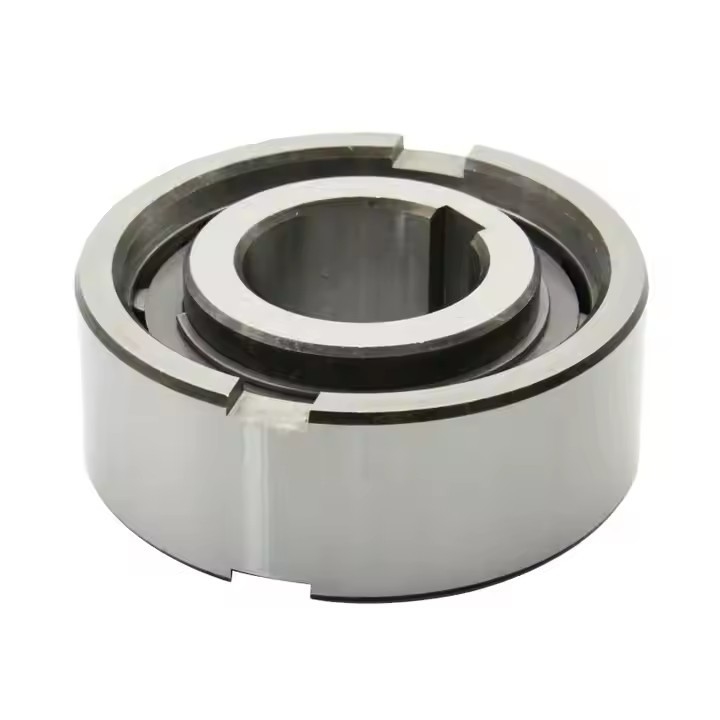

Introduction of ASNU series one way clutch bearing
Type ASNU is a roller type freewheel nonbearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63...Ball bearing.
A typical arrangement is to install this type alongside a bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.
If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and uter race of ± S/2.
Parameter of ASNU series one way clutch bearing
| Type | Size |
Overrunning Speeds |
Weight | Drag torque | ||||||||||
| ASNU | dH7 | TKN1) | nimax2) | namax3) | Dn6 | D5 | L | b | t | s | e | f | TR | |
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
| 8 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.07 | 1.6 | |
| 12 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.06 | 1.6 | |
| 15 | 30 | 2400 | 3600 | 42 | 37 | 18 | 5 | 1.8 | 2.4 | 0.8 | 0.3 | 0.11 | 1.9 | |
| 17 | 49 | 2300 | 3400 | 47 | 40 | 19 | 5 | 2.3 | 2.4 | 1.2 | 0.8 | 0.15 | 1.9 | |
| 20 | 78 | 2100 | 3100 | 52 | 42 | 21 | 6 | 2.3 | 2.4 | 1.2 | 0.8 | 0.19 | 1.9 | |
| 25 | 125 | 1700 | 2600 | 62 | 51 | 24 | 8 | 2.8 | 2.4 | 1.2 | 0.8 | 0.38 | 5.6 | |
| 30 | 255 | 1400 | 2200 | 72 | 60 | 27 | 10 | 2.5 | 2.4 | 1.8 | 1 | 0.54 | 14 | |
| 35 | 383 | 1200 | 1900 | 80 | 70 | 31 | 12 | 3.5 | 2.4 | 1.8 | 1 | 0.74 | 16 | |
| 40 | 538 | 1100 | 1700 | 90 | 78 | 33 | 12 | 4.1 | 2.5 | 1.8 | 1 | 0.92 | 38 | |
| 45 | 780 | 1000 | 1600 | 100 | 85 | 36 | 14 | 4.6 | 2.5 | 1.8 | 1 | 1.31 | 43 | |
| 50 | 1013 | 850 | 1350 | 110 | 92 | 40 | 14 | 5.6 | 2.5 | 1.8 | 1 | 1.74 | 55 | |
| 60 | 1825 | 750 | 1050 | 130 | 110 | 46 | 18 | 5.5 | 3.6 | 2.6 | 1.5 | 2.77 | 110 | |
| 70 | 2300 | 600 | 950 | 150 | 125 | 51 | 20 | 6.9 | 3.6 | 2.6 | 1.5 | 4.16 | 140 | |
| 80 | 3275 | 550 | 850 | 170 | 140 | 58 | 20 | 7.5 | 3.6 | 2.6 | 1.5 | 6.09 | 180 | |
| 90 | 5325 | 500 | 750 | 190 | 160 | 64 | 20 | 8 | 3.6 | 2.6 | 2 | 8.2 | 230 | |
| 100 | 7250 | 450 | 680 | 215 | 175 | 73 | 24 | 8.5 | 3.6 | 2.6 | 2 | 12.6 | 380 | |
| 120 | 13500 | 370 | 550 | 260 | 215 | 86 | 28 | 10 | 3.6 | 2.6 | 2.5 | 22 | 650 | |
| 150 | 26625 | 300 | 460 | 320 | 260 | 108 | 32 | 12 | 3.6 | 3.6 | 2.5 | 42 | 1000 | |
| 200 | 44500 | 230 | 350 | 420 | 350 | 138 | 45 | 16 | 7.6 | 3.6 | 3 | 93 | 2000 | |
