Product Details
Place of Origin: CHINA
Brand Name: SFT
Model Number: ASNU25
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: 1-50USD/PC
Packaging Details: neutral
Delivery Time: 45 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000PCS
Torque (Nm): |
24 |
Material: |
Gcr15 , Stainless Steel |
Hardness: |
HRC58-62 |
Type: |
Roller Or Sprag |
Weight: |
0.38kg |
Height (mm): |
16mm |
Torque (Nm): |
24 |
Material: |
Gcr15 , Stainless Steel |
Hardness: |
HRC58-62 |
Type: |
Roller Or Sprag |
Weight: |
0.38kg |
Height (mm): |
16mm |
Type BWX is a sprag type freewheel cage without inner or outer races. It must be installed in a
design providing races, bearing support for axial and radial loads, lubrication and sealing. The BWX type version-N accepts all types of lubricants currently used in the power transmis-sion equipement.
The Parameters of the Sprag Freewheel Cage BWX
| Size | Type | Nominal torque MN Nm |
J +0,008 -0,005 mm |
D ±0,013 mm |
B mm |
K mm |
Sprags Quantity | Drag strips Quantity |
Brake clips Quantity |

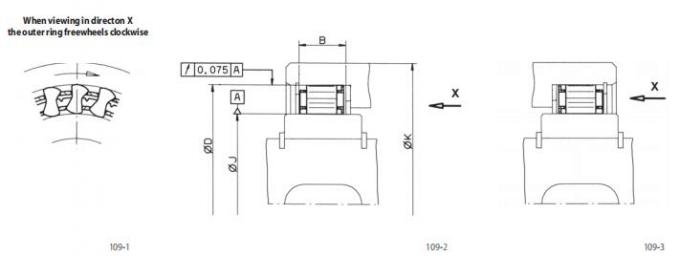

Design as ill. | Weight kg |
| BWX133590A | Disengaging | 63 | 22,225 | 38,887 | 10,0 | 44,0 | 12 | 109-2 | 0,03 | ||
| BWX13143A | Engaging | 120 | 27,767 | 44,425 | 13,5 | 51,0 | 14 | 109-2 | 0,06 | ||
| BWX133392 | Disengaging | 280 | 38,092 | 54,750 | 16,0 | 71,0 | 18 | 109-3 | 0,09 | ||
| BWX1310145 | Disengaging | 180 | 41,275 | 57,937 | 13,5 | 74,2 | 14 | 3 | 109-2 | 0,07 | |
| BWX132909A | Disengaging | 360 | 44,450 | 61,112 | 16,0 | 78,5 | 20 | 2 | 3 | 109-2 | 0,10 |
| BWX133339 | Disengaging | 310 | 49,721 | 66,383 | 13,5 | 85,0 | 22 | 2 | 4 | 109-2 | 0,09 |
| BWX1310003 | Disengaging | 310 | 49,721 | 66,383 | 13,5 | 85,0 | 22 | 4 | 109-2 | 0,09 | |
| BWX137222 | Engaging | 570 | 49,721 | 66,383 | 19,0 | 85,0 | 22 | 109-2 | 0,12 | ||
| BWX1310445 | Disengaging | 400 | 54,765 | 71,427 | 13,5 | 91,7 | 24 | 109-2 | 0,09 | ||
| BWX1310172 | Engaging | 540 | 54,765 | 71,427 | 16,0 | 91,7 | 24 | 109-2 | 0,12 | ||
| BWX1310226 | Disengaging | 520 | 54,765 | 71,427 | 16,0 | 91,7 | 24 | 2 | 4 | 109-2 | 0,12 |
| BWX136709 | Engaging | 770 | 54,765 | 71,427 | 21,0 | 91,7 | 24 | 3 | 10 | 109-2 | 0,16 |
| BWX1310147 | Disengaging | 1 000 | 54,765 | 71,427 | 25,4 | 91,7 | 24 | 3 | 8 | 109-2 | 0,20 |
| BWX136324 | Engaging | 600 | 57,760 | 74,427 | 19,0 | 95,0 | 26 | 109-3 | 0,14 | ||
| BWX1310080 | Disengaging | 670 | 72,217 | 88,882 | 13,5 | 115,0 | 30 | 4 | 109-2 | 0,12 | |
| BWX13168 | Engaging | 1 300 | 72,217 | 88,882 | 21,0 | 115,0 | 30 | 109-3 | 0,20 | ||
| BWX134012 | Engaging | 1 300 | 72,217 | 88,882 | 21,0 | 115,0 | 30 | 4 | 10 | 109-3 | 0,20 |
| BWX137322 | Disengaging | 2 000 | 796,982 | 96,363 | 25,4 | 124,0 | 34 | 5 | 12 | 109-2 | 0,28 |
| BWX138316 | Disengaging | 2 960 | 835,972 | 102,596 | 25,4 | 131,6 | 34 | 5 | 12 | 109-2 | 0,30 |
| BWX13261A1 | Disengaging | 1 600 | 1,032,312 | 119,893 | 16,0 | 154,0 | 40 | 6 | 10 | 109-3 | 0,19 |
| BWX13236 | Disengaging | 1 700 | 1,173,912 | 136,391 | 16,0 | 175,3 | 30 | 5 | 6 | 109-3 | 0,25 |
| BWX133403B | Engaging | 4 900 | 1,238,812 | 142,880 | 25,4 | 188,0 | 44 | 11 | 109-2 | 0,46 |
