Product Details
Place of Origin: China
Brand Name: SFT
Model Number: XML10
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Type: |
Rod End |
Material: |
Steel Alloy |
Feature: |
Long Life |
Keyword: |
Male Rod End |
Type: |
Rod End |
Material: |
Steel Alloy |
Feature: |
Long Life |
Keyword: |
Male Rod End |

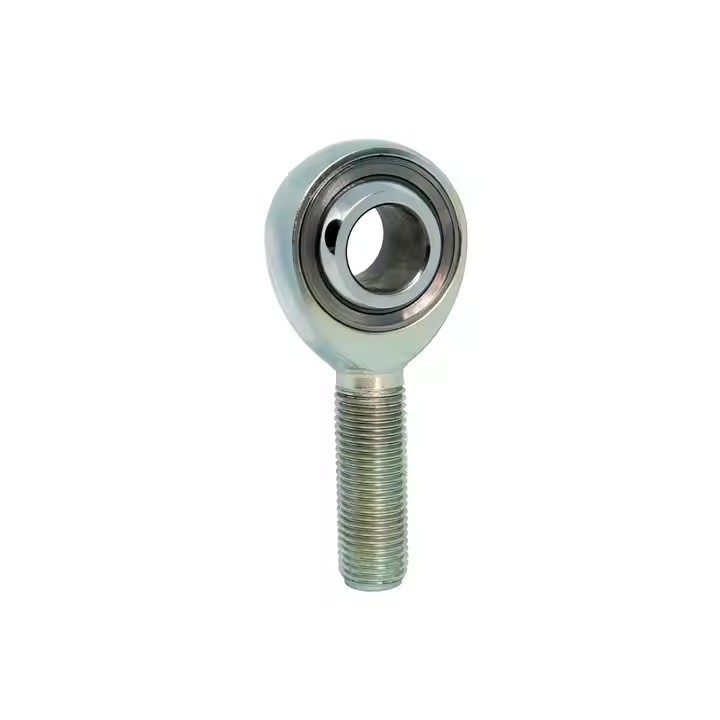

For the ultimate in performance rod ends, look no further than QA1’s XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.
|
BALL · • 52100 Bearing Steel · • Heat Treated · • Hard Chrome Plated · • Precision Ground |
RACE · • Nylon/PTFE · • Self-Lubricating · • Self-Sealing |
|
BODY · • Chromoly Steel · • Heat Treated · • Protective Coated for Corrosion Resistance
|
EXCLUSIVE FEATURES · • Metal to Metal Support for Heavy Shock Loads • Increased Cross-Sectional Thickness for Greater Tensile Strength |
| Part Number | Name | Thread Type |
B +0.0015 -0.0005 |
W ±0.005 |
T ±0.005 |
A ±0.005 |
D ±0.010 |
Ball Dia.Ref. |
C +0.062 -0.031 |
Thread UNF-3A | Misalign Angle a° | Ult. Radial Static Load Lbs. | Approx. Bearing Weight |
| XM4 | XM Endura Series Rod End | Right/Left | 0.25 | 0.375 | 0.281 | 1.562 | 0.75 | 0.5 | 1 | 1/4-28 | 16 | 5260 | 0.04 |
| XM5 | XM Endura Series Rod End | Right/Left | 0.3125 | 0.437 | 0.344 | 1.875 | 0.875 | 0.625 | 1.25 | 5/16-24 | 14 | 7639 | 0.07 |
| XM6 | XM Endura Series Rod End | Right/Left | 0.3125 | 0.437 | 0.344 | 1.938 | 1 | 0.625 | 1.25 | 3/8-24 | 12 | 10382 | 0.11 |
| XM7 | XM Endura Series Rod End | Right/Left | 0.375 | 0.5 | 0.406 | 2.125 | 1.125 | 0.719 | 1.375 | 7/16-20 | 10 | 14006 | 0.15 |
| XM8 | XM Endura Series Rod End | Right/Left | 0.5 | 0.625 | 0.5 | 2.438 | 1.312 | 0.937 | 1.5 | 1/2-20 | 12 | 16238 | 0.24 |
| XM8-10 | XM Endura Series Rod End | Right/Left | 0.5 | 0.625 | 0.5 | 2.625 | 1.5 | 0.937 | 1.625 | 5/8-18 | 10 | 23542 | 0.36 |
| XM10 | XM Endura Series Rod End | Right/Left | 0.625 | 0.75 | 0.562 | 2.625 | 1.5 | 1.125 | 1.625 | 5/8-18 | 16 | 17955 | 0.36 |
| XM10-12 | XM Endura Series Rod End | Right/Left | 0.625 | 0.75 | 0.562 | 2.875 | 1.75 | 1.125 | 1.75 | 3/4-16 | 13 | 31680 | 0.57 |
| XM12 | XM Endura Series Rod End | Right/Left | 0.75 | 0.875 | 0.687 | 2.875 | 1.75 | 1.312 | 1.75 | 3/4-16 | 14 | 28081 | 0.57 |
| XM14 | XM Endura Series | Right/Left | 0.875 | 0.875 | 0.765 | 3.375 | 2 | 1.375 | 2 | 7/8-14 | 7 | 45051 | 0.88 |
